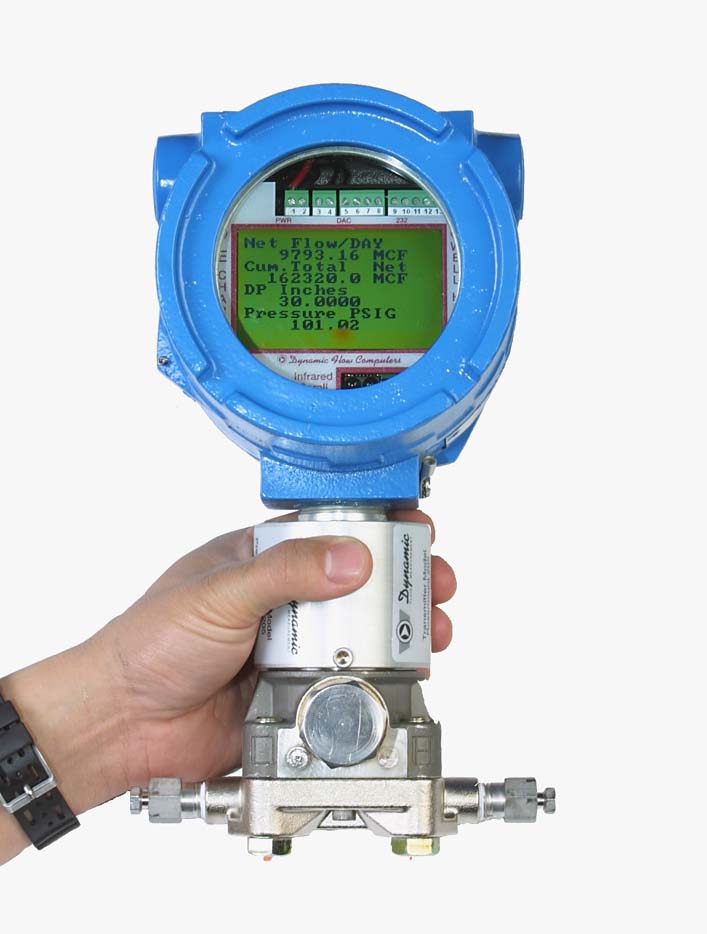

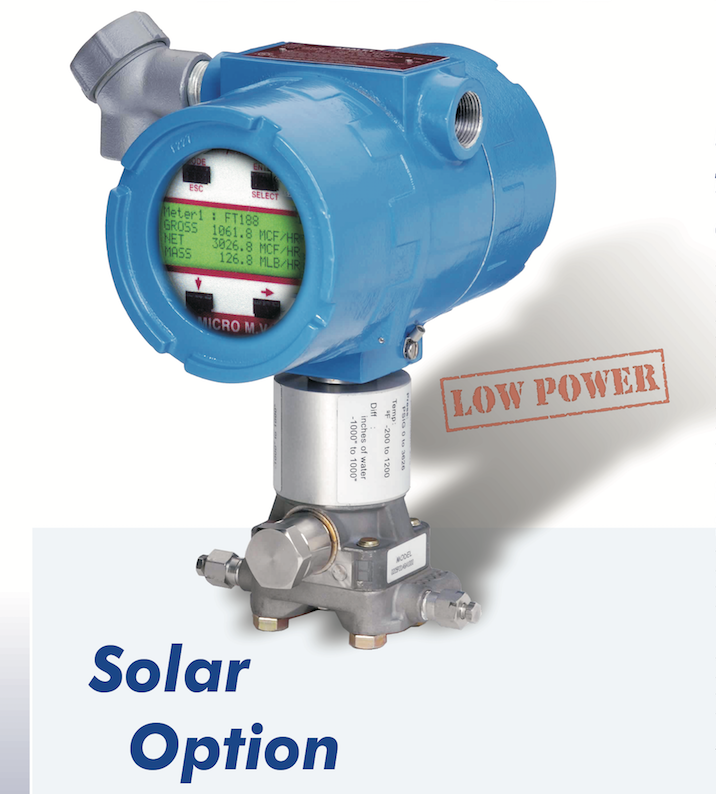

Micro MV

Short Description Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nulla at erat interdum velit eleifend ornare nec ut erat.

General Details

  • Easy to Set Up
  • Custody Compliant
  • Multifunctional
  • Single Screen Graphical Diagnostic
  • Alerts Against Operator Errors
  • Software Generated Chart Recordings
  • Micro Motion Interface
  • Interactive DYNACOM Configuration Software
  • All Software/Firmware Updates Available Online
  • ]]>

    Specifications
    ENVIRONMENTAL PRODUCTS METER TYPES
    -40 TO 185 Degrees F @ 100% Humidity Acetylene Annubar™
    7-28 VDC @ 0.5 WATT Benzene Nozzle
    Group B, C, D Housing Brine Water Orifice Meter
    NEMA 4x, Class 1, Division 1 Butadiene Perso Flow (Ellips®e Pitot)
    Crude Oil / Condensate SmartCone®
    GRAPHIC DISPLAY Industrial Gases (Premium Billing) Turbine / Frequency Meter
    Automatic Scrolling * Air Venturi
    Backlit Display with 4 Infrared Reflective Sensors * Aragon Verabar™
    Min Max Charting * Hydrogen Wedge
    Minutes, Hours, Days * Nitrogen
    Plasma 4 Lines, 20 Characters * Oxygen STANDARDS
    * Parahydrogen AGA3, AGA7
    COMMUNICATION OPTIONS Liquid CO2 API 14.3
    GSM Radio Liquid Products w/ no Compensation ISO
    Satellite LPG / Ethane / Pentane / Hexane
    Serial Modbus Lube Oil
    TCP/IP Encapsulated Modbus
    (Optional Serial to Ethernet Converter is Used)
    Naptha
    APPLICATIONS
    Allocation Measurement Propane / Propylene Mix
    Custody Measurement Refined Products
    Gas Process Plants Saturated Steam
    Liquid Totalizing Specialized Products
    PID Control Superheated Steam
    Plunger Control Water
    Premium Billing
    Smart Field I/O
    Well Head Measurement
    Product Video

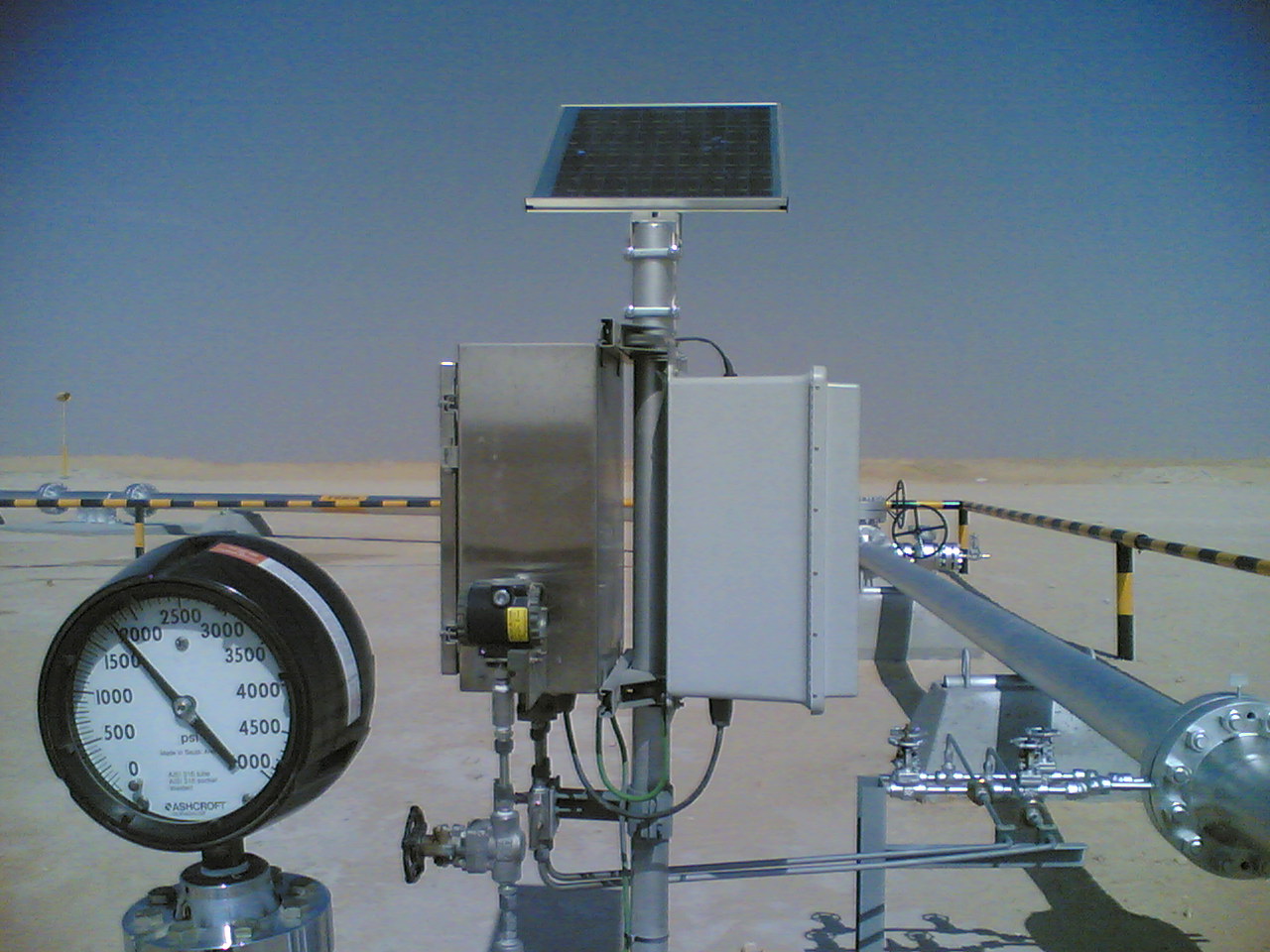

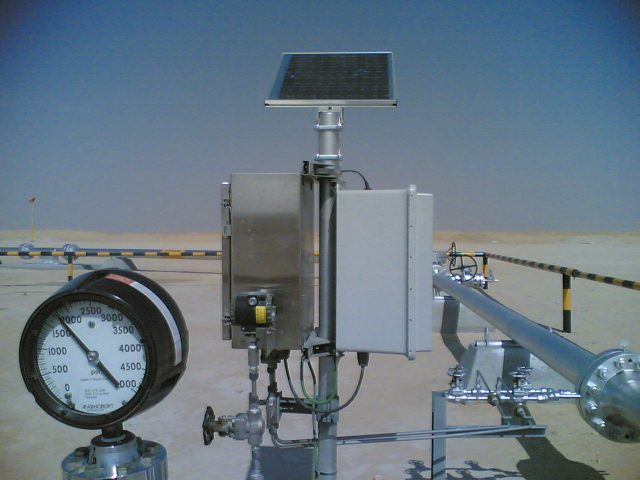

    Installation Photos
